Bellows Single Full Graphite Cartridge Seal

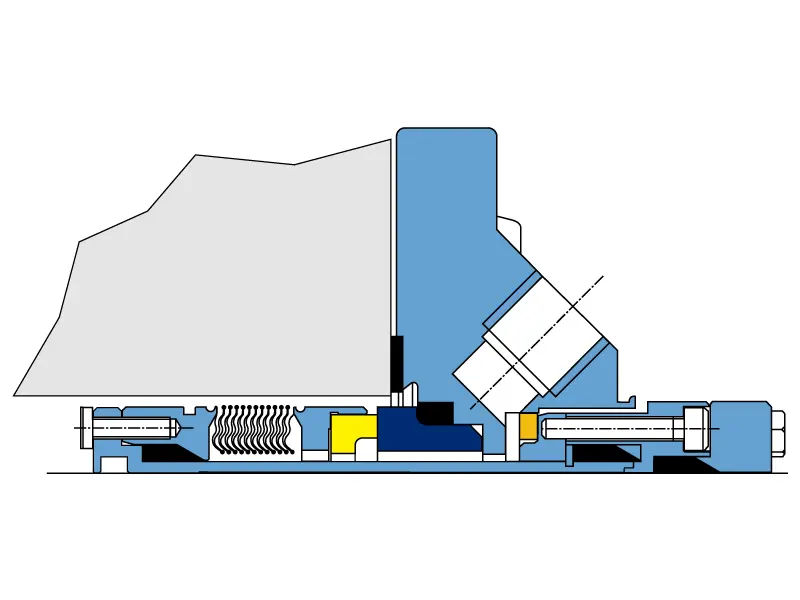

The BSFG™ (Bellows Single Full Graphite) cartridge seal is specifically designed to eliminate the costly and often long lead-time issues of exotic elastomer compounds. This seal features graphite rings at every primary sealing surface, eliminating the need for elastomers.
The hydraulically balanced bellows unit is available in a variety of different material options with either elastomer or graphite packing sealing rings.
Features:
- Full graphite seal for high temperature or corrosive chemical applications
- Fits pumps with thin radial seal chamber cross-sections
- Quench flush and drain ports for cooling or heating options to maximize seal life
- cartridge design for ease of installation
- Sizes available from 1.000" to 4.000" (24mm - 100mm) in standard and ANSI Plus gland formats
